Aluminium Squeeze Casting

Aluminium squeeze casting

 Aluminium squeeze casting, some people like to typing as Aluminium squeezing casting, also known as liquid metal forging, is a casting process which is combined with Aluminium casting and Aluminium forging process.
In Aluminium squeeze casting, the tooling have 2 halves: upper die and bottom die. When casting, the molten metal will be poured into the bottom half of the pre-heated die. As the metal starts solidifying, the upper half closes the die and applies external pressure during the solidification process. And the upper die only removed after the metal is cooled. The amount of pressure thus applied is much less than used in forging, with the purpose to prevent the formation of shrinkage porosity, and parts of great detail can be produced.
In other words, Aluminium squeeze casting is forming Aluminium alloy into shapes after Aluminium alloy liquid adding to the dies by using two dies that are squeezed together, this is not like most other casting techniques use two dies that are squeezed together before the metal is added.

 By using this technology, compared to the other casting technique, the Aluminium squeezing casting will typically come out with better grain and less metallic shrinking and much stronger mechanical properties.

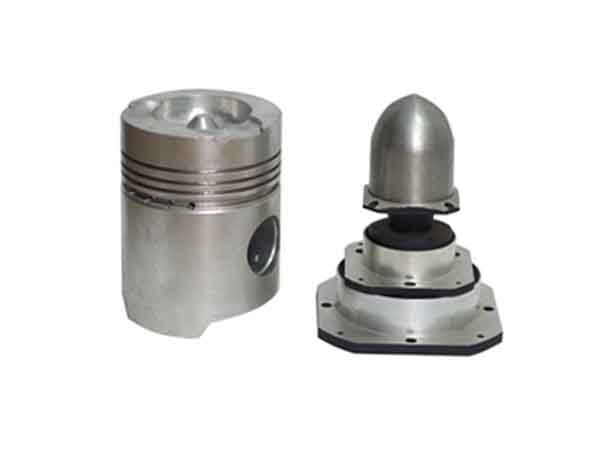

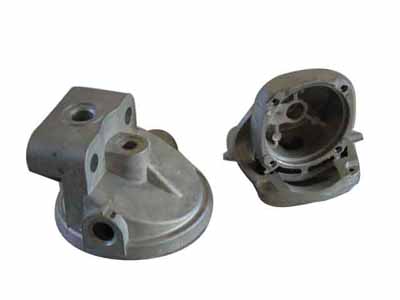

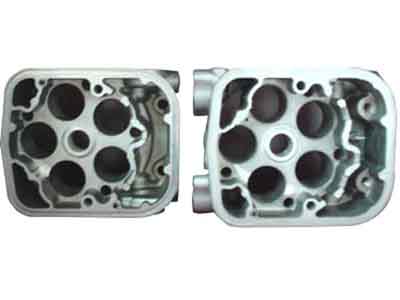

 This technology always be applied for high strength or less porosity required components.  As worked in this area for tens of years, We have rich experience in design, manufacture, supply Aluminium squeeze castings. We know how to make high quality Aluminium castings. And we also know the advantages and disadvantages of this process, we can help our customer to choose the most suitable solution for their products. Now we can provide our Aluminium squeeze casting products all over the world.  The Aluminium squeeze casting parts include Aluminium shaft, Aluminium crank, Aluminium fork, supporting rods, Aluminium torque bar, Aluminium gear, Aluminium wheel, Aluminium piston, Aluminium impeller, Aluminium vanes, Aluminium condenser component, Aluminium runner, control level, connecting rod, cylinder parts, auto parts, pump parts valve body, motorcycle parts, valve parts, marine parts, plane parts etc.

 If you have any enquiries or questions, just drop off us a letter to email：sales@nbintime.com, we will take care other things for you! That’s simple.
